Password Security in Flutter Apps: AES Encryption with Salt and IV

Understanding AES, Salt, and IV

• AES (Advanced Encryption Standard):

  • A powerful and widely used symmetric encryption standard.

  • Uses the same key for both encryption and decryption.

  • Secure and efficient for mobile applications.

• What is Salt, and why is it needed?

  • Salt is a random string added before encryption.

  • Ensures that encrypting the same data with the same passphrase produces different results.

  • Prevents dictionary attacks and lookup table attacks.

• IV (Initialization Vector):

  • IV is a randomly generated initialization value used in encryption modes like CBC.

  • Ensures that the same plaintext encrypts into different ciphertexts.

Applying Security to Password Encryption in the App

The encryptAESCryptoJS Function

encryptAESCryptoJS

• Functionality:

  • Encrypts a plaintext string (plainText) using a passphrase.

  String encryptAESCryptoJS(String plainText, String passphrase) {
    try {
      final salt = _genRandomWithNonZero(8);
      final keyndIV = _deriveKeyAndIV(passphrase, salt);
      final key = e.Key(keyndIV[0]);
      final iv = e.IV(keyndIV[1]);

      final encrypter = e.Encrypter(e.AES(key, mode: e.AESMode.cbc));
      final encrypted = encrypter.encrypt(plainText, iv: iv);
      final Uint8List encryptedBytesWithSalt = Uint8List.fromList(_createUint8ListFromString("Salted__") + salt + encrypted.bytes);
      return base64.encode(encryptedBytesWithSalt);
    } catch (error) {
      rethrow;
    }
  }

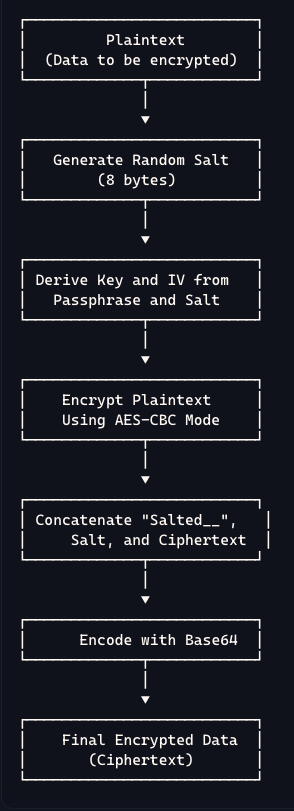

• How It Works:

  1. Generate a Random Salt:

     • Uses _genRandomWithNonZero(8) to create an 8-byte random salt.

     • The salt ensures randomness and security in the encryption process.

       Uint8List _genRandomWithNonZero(int seedLength) {
           final random = Random.secure();
           const int randomMax = 245;
           final Uint8List uint8list = Uint8List(seedLength);
           for (int i = 0; i < seedLength; i++) {
             uint8list[i] = random.nextInt(randomMax) + 1;
           }
           return uint8list;
       }

  2. Derive Key and IV:

     • _deriveKeyAndIV(passphrase, salt) generates a key and IV from the passphrase and salt.

     • Uses multiple MD5 hash iterations to generate enough data for both the key and IV.

          List<Uint8List> _deriveKeyAndIV(String passphrase, Uint8List salt) {
             final password = _createUint8ListFromString(passphrase);
             Uint8List concatenatedHashes = Uint8List(0);
             Uint8List currentHash = Uint8List(0);
             bool enoughBytesForKey = false;
             Uint8List preHash = Uint8List(0);

             while (!enoughBytesForKey) {
             final int preHashLength = currentHash.length + password.length + salt.length;
             if (currentHash.isNotEmpty) {
              preHash = Uint8List.fromList(currentHash + password + salt);
             } else {
              preHash = Uint8List.fromList(password + salt);
             }

                 currentHash = preHash.myMd5;
                 concatenatedHashes = Uint8List.fromList(concatenatedHashes + currentHash);
                 if (concatenatedHashes.length >= 48) enoughBytesForKey = true;
             }

             final keyBytes = concatenatedHashes.sublist(0, 32);
             final ivBytes = concatenatedHashes.sublist(32, 48);
             return [keyBytes, ivBytes];
         }

  3. Encrypt the Data:

     • Uses the key and IV to encrypt plainText with the AES algorithm in CBC mode.

     • Produces an encrypted byte sequence.

  4. Prepare the Final Encrypted Data:

     • Concatenates "Salted__" + salt + encrypted bytes.

     • Encodes the entire sequence in base64 for easy storage or transmission.

       Uint8List _createUint8ListFromString(String s) {
         final ret = Uint8List(s.length);
         for (var i = 0; i < s.length; i++) {
           ret[i] = s.codeUnitAt(i);
         }
         return ret;
      }

• Why Does the Encrypted Output Differ Each Time?

  • Since a new random salt is generated every time, even if the same plainText and passphrase are used, the encrypted result will always be different.

  • This enhances security and prevents attacks based on comparing encrypted outputs.

decryptAESCryptoJS Function

decryptAESCryptoJS

• Functionality:

  • Decrypts a string that was encrypted using encryptAESCryptoJS.

 String decryptAESCryptoJS(String encrypted, String passphrase) {
  try {
    final Uint8List encryptedBytesWithSalt = base64.decode(encrypted);

    final Uint8List encryptedBytes = encryptedBytesWithSalt.sublist(16, encryptedBytesWithSalt.length);
    final salt = encryptedBytesWithSalt.sublist(8, 16);
    final keyndIV = _deriveKeyAndIV(passphrase, salt);
    final key = e.Key(keyndIV[0]);
    final iv = e.IV(keyndIV[1]);

    final encrypter = e.Encrypter(e.AES(key, mode: e.AESMode.cbc));
    final decrypted = encrypter.decrypt64(base64.encode(encryptedBytes), iv: iv);
    return decrypted;
  } catch (error) {
    rethrow;
  }
}

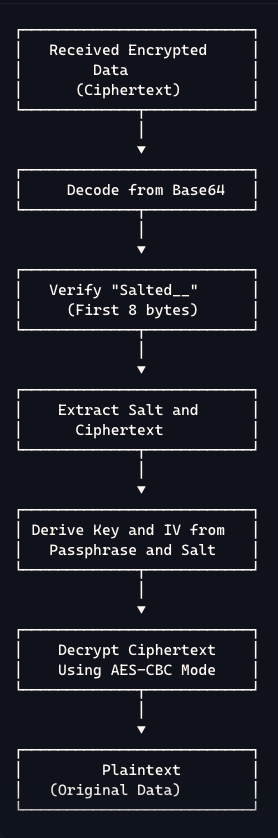

• How It Works:

  1. Decode Base64:

     • Converts the encrypted string from base64 format back to its original byte form.

  2. Extract Salt and Encrypted Data:

     • Discards the first 8 bytes ("Salted__").

     • Extracts the next 8 bytes as the salt.

     • Retrieves the remaining bytes as the encrypted data.

  3. Derive Key and IV Again:

     • Uses the _deriveKeyAndIV function with the extracted salt and passphrase to regenerate the encryption key and IV.

  4. Decrypt the Data:

     • Uses the key and IV to decrypt the encrypted data using AES in CBC mode.

     • The result is the original plainText.

verify and verifyEncrypted Functions

• Purpose:

  • Ensures the integrity and correctness of the encryption and decryption process.

• How It Works:

  • verify: Compares the original plainText with the decrypted result of an encrypted string.

          bool verify({
            required String text,
            required String encrypted,
            required String passphrase,
          }) {
            try {
             return text == decryptAESCryptoJS(encrypted, passphrase);
            } catch (e) {
             return false;
            }
         }

  • verifyEncrypted: Decrypts two encrypted strings and compares their results.

            bool verifyEncrypted({
            required String encrypted1,
            required String encrypted2,
            required String passphrase,
            }) {
                if (encrypted1 == encrypted2) return false;
                try {
                  return decryptAESCryptoJS(encrypted1, passphrase) == decryptAESCryptoJS(encrypted2, passphrase);
                } catch (e) {
                  return false;
                }
            }

How to Use the Code in a Flutter Project

Install Dependencies

• Add the following to pubspec.yaml:

  dependencies:
    encrypt: ^5.0.1

• Run the command:

  flutter pub get

Using Encryption and Decryption Functions

• Combine the previous code snippets into a MyEncrypt class.

import 'dart:convert';
import 'dart:math';
import 'dart:typed_data';

import 'package:dart_core/dart_core.dart';
import 'package:encrypt/encrypt.dart' as e;
// import 'package:flutter/services.dart';

class MyEncrypt {
    const MyEncrypt();

    /*
    Learn more | https://pub.dev/packages/encrypt

    Generate password
    Run |
    flutter pub global activate encrypt
    secure-random

    */

    // #TESTED
    String encryptAESCryptoJS(String plainText, String passphrase) {
    try {
        final salt = _genRandomWithNonZero(8);
        final keyndIV = _deriveKeyAndIV(passphrase, salt);
        final key = e.Key(keyndIV[0]);
        final iv = e.IV(keyndIV[1]);

          final encrypter = e.Encrypter(e.AES(key, mode: e.AESMode.cbc));
          final encrypted = encrypter.encrypt(plainText, iv: iv);
          final Uint8List encryptedBytesWithSalt = Uint8List.fromList(_createUint8ListFromString("Salted__") + salt + encrypted.bytes);
          return base64.encode(encryptedBytesWithSalt);
        } catch (error) {
          rethrow;
        }
    }

    // #TESTED
    String decryptAESCryptoJS(String encrypted, String passphrase) {
    try {
    final Uint8List encryptedBytesWithSalt = base64.decode(encrypted);

          final Uint8List encryptedBytes = encryptedBytesWithSalt.sublist(16, encryptedBytesWithSalt.length);
          final salt = encryptedBytesWithSalt.sublist(8, 16);
          final keyndIV = _deriveKeyAndIV(passphrase, salt);
          final key = e.Key(keyndIV[0]);
          final iv = e.IV(keyndIV[1]);

          final encrypter = e.Encrypter(e.AES(key, mode: e.AESMode.cbc));
          final decrypted = encrypter.decrypt64(base64.encode(encryptedBytes), iv: iv);
          return decrypted;
        } catch (error) {
          rethrow;
        }
    }

    bool verify({
    required String text,
    required String encrypted,
    required String passphrase,
    }) {
        try {
          return text == decryptAESCryptoJS(encrypted, passphrase);
        } catch (e) {
          return false;
        }
    }

    bool verifyEncrypted({
    required String encrypted1,
    required String encrypted2,
    required String passphrase,
    }) {
        if (encrypted1 == encrypted2) return false;
        try {
          return decryptAESCryptoJS(encrypted1, passphrase) == decryptAESCryptoJS(encrypted2, passphrase);
        } catch (e) {
          return false;
        }
    }

    List<Uint8List> _deriveKeyAndIV(String passphrase, Uint8List salt) {
    final password = _createUint8ListFromString(passphrase);
    Uint8List concatenatedHashes = Uint8List(0);
    Uint8List currentHash = Uint8List(0);
    bool enoughBytesForKey = false;
    Uint8List preHash = Uint8List(0);

        while (!enoughBytesForKey) {
          final int preHashLength = currentHash.length + password.length + salt.length;
          if (currentHash.isNotEmpty) {
            preHash = Uint8List.fromList(currentHash + password + salt);
          } else {
            preHash = Uint8List.fromList(password + salt);
          }

          currentHash = preHash.myMd5;
          concatenatedHashes = Uint8List.fromList(concatenatedHashes + currentHash);
          if (concatenatedHashes.length >= 48) enoughBytesForKey = true;
        }

        final keyBytes = concatenatedHashes.sublist(0, 32);
        final ivBytes = concatenatedHashes.sublist(32, 48);
        return [keyBytes, ivBytes];
    }

    Uint8List _createUint8ListFromString(String s) {
        final ret = Uint8List(s.length);
        for (var i = 0; i < s.length; i++) {
          ret[i] = s.codeUnitAt(i);
        }
        return ret;
    }

    Uint8List _genRandomWithNonZero(int seedLength) {
        final random = Random.secure();
        const int randomMax = 245;
        final Uint8List uint8list = Uint8List(seedLength);
        for (int i = 0; i < seedLength; i++) {
          uint8list[i] = random.nextInt(randomMax) + 1;
        }
        return uint8list;
    }
}

• Encrypt Data:

  final encryptHelper = MyEncrypt();
  final plainText = "Data to be encrypted";
  final passphrase = "Secret password";

  final encryptedText = encryptHelper.encryptAESCryptoJS(plainText, passphrase);

• Decrypt Data:

  final decryptedText = encryptHelper.decryptAESCryptoJS(encryptedText, passphrase);

• Verify the Result:

  final isVerified = encryptHelper.verify(
    text: plainText,
    encrypted: encryptedText,
    passphrase: passphrase,
  );

Notes on Usage

• Protecting the passphrase:

  • Do not store the passphrase as plain text in the source code or database.

  • Use secure methods such as environment variables or secret management services.

• Managing Keys and Sensitive Data:

  • Restrict access to encryption-related code.

  • Follow data security regulations and best practices.

Why Are Salt and IV Important?

• Salt:

  • Prevents dictionary and rainbow table attacks.

  • Ensures unique encryption results for the same plaintext.

  • Without Salt, attackers can compare ciphertexts to detect patterns.

  • This is particularly dangerous if multiple users share the same passphrase or sensitive data.

  • Using Salt is like adding a unique spice to a dish, making each encryption process different.

  • This prevents attackers from guessing your "recipe."

• IV (Initialization Vector):

  • Ensures security in CBC mode encryption.

  • Prevents repeating patterns in encrypted data.

Conclusion

• Security is not optional; it's a mandatory requirement in app development.

• Using AES encryption with Salt and IV effectively protects user data.

• With this guide, you and your team can implement a secure encryption solution for your Flutter app.

• If you want to skip the complex parts and use it right away, check out my package: https://pub.dev/packages/my_salt.
